Specifications and Features
Specifications
| Model | TX041-SAE/TX041-MET |
| Brand | Topex |
| Quantity | 40 pcs |
| Material | Fine Carbon Steel |
| Surface Treatment | Bright |
| Process | Fully Ground Rolling |
| Marking | Laser Marking |
| Packing | Plastic Case |

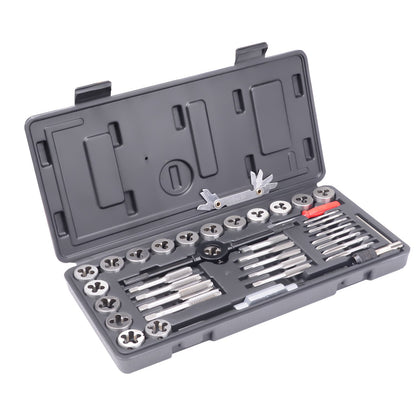

Features

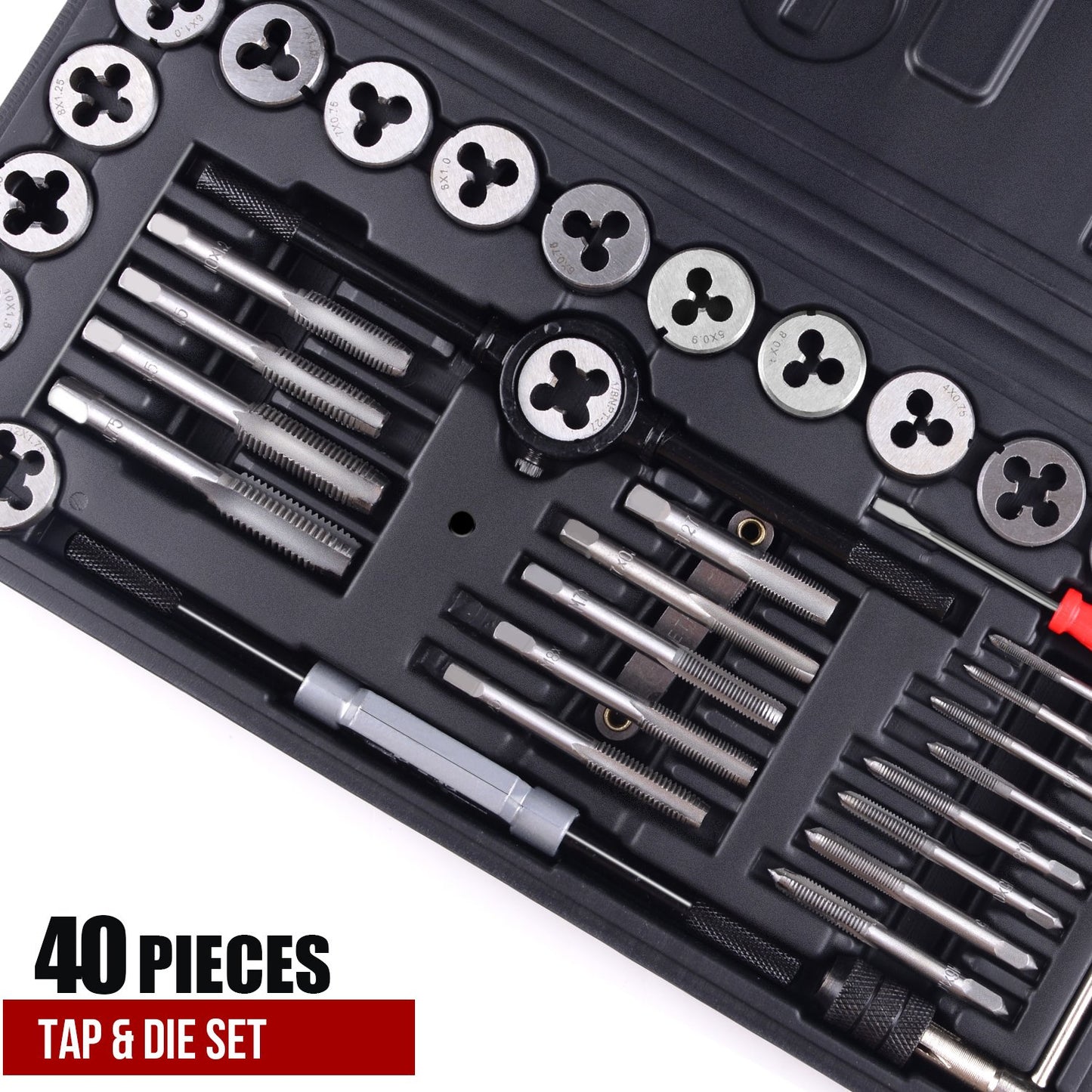

- CUT AND RENEW THREADS: The Metric and Imperial Standard Tap and Die 40-Piece thread Set threading Kit for Cutting External and Internal Threads is a comprehensive set for cutting and renewing external and internal threads to exact standards
- HARDNESS: 45-50 HRC. Suitable for cutting threads in brass, mild steel, aluminium, wood, plastic.
- EASY STORAGE: Heavy-duty plastic blow-moulded carrying case for easy transportation, safe storage, and quick organisation

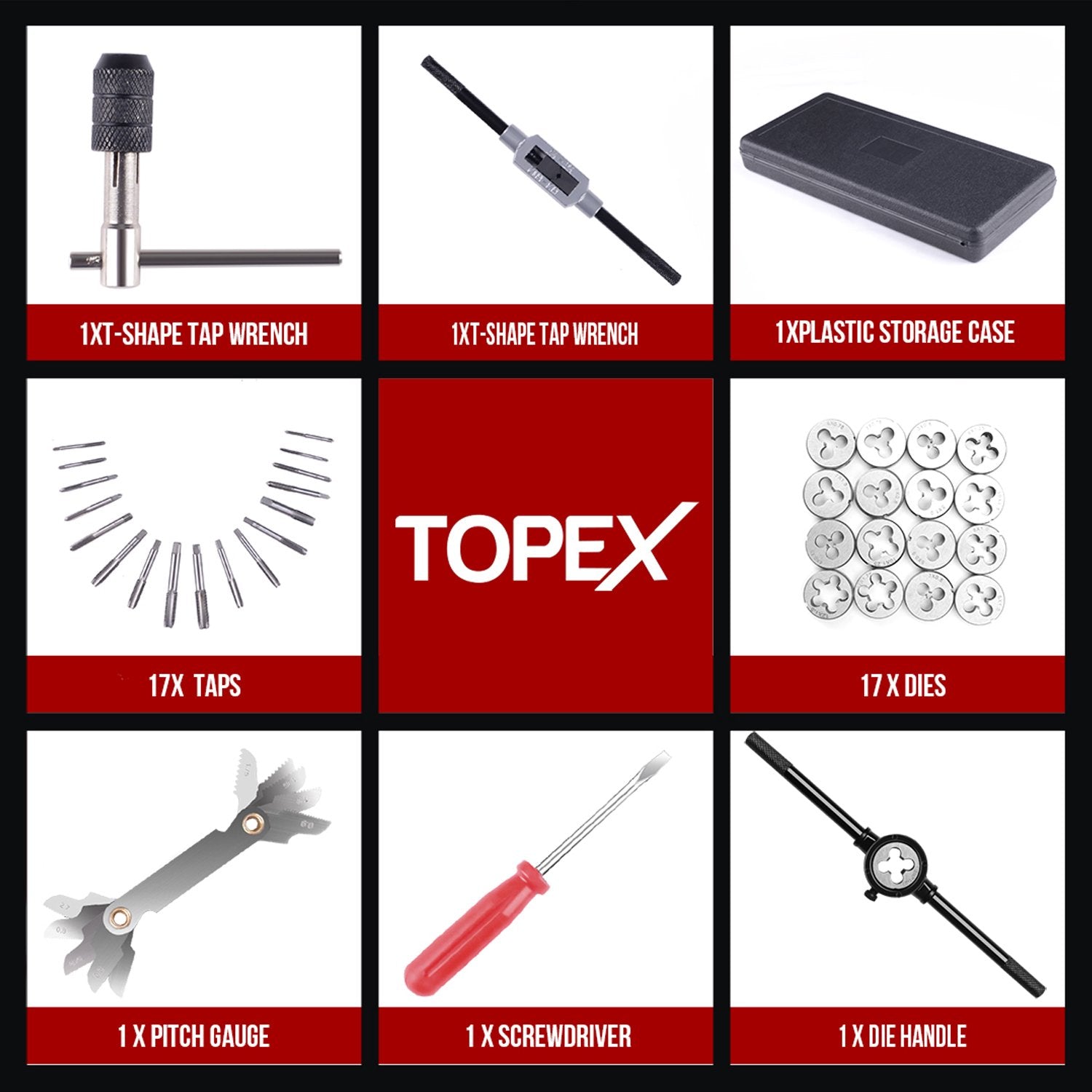

Package Content
-
**Metric Package Including:
17DIES&TAPS - M3X0.5 M3X0.6 M4X0.7 M4X0.75 M5X0.8
M5X0.9 M6X0.75 M6X1.0 M7X0.75 M7X1.0 M8X1.0 M8X1.25
M10X1.25 M10X1.5 M12X1.5 M12X1.75 1/8-27 NPT - 1 x Adjustable Tap Wrench (M3-M12) - Total Length 195mm
- 1 x Die Holder-Total Length 195mm

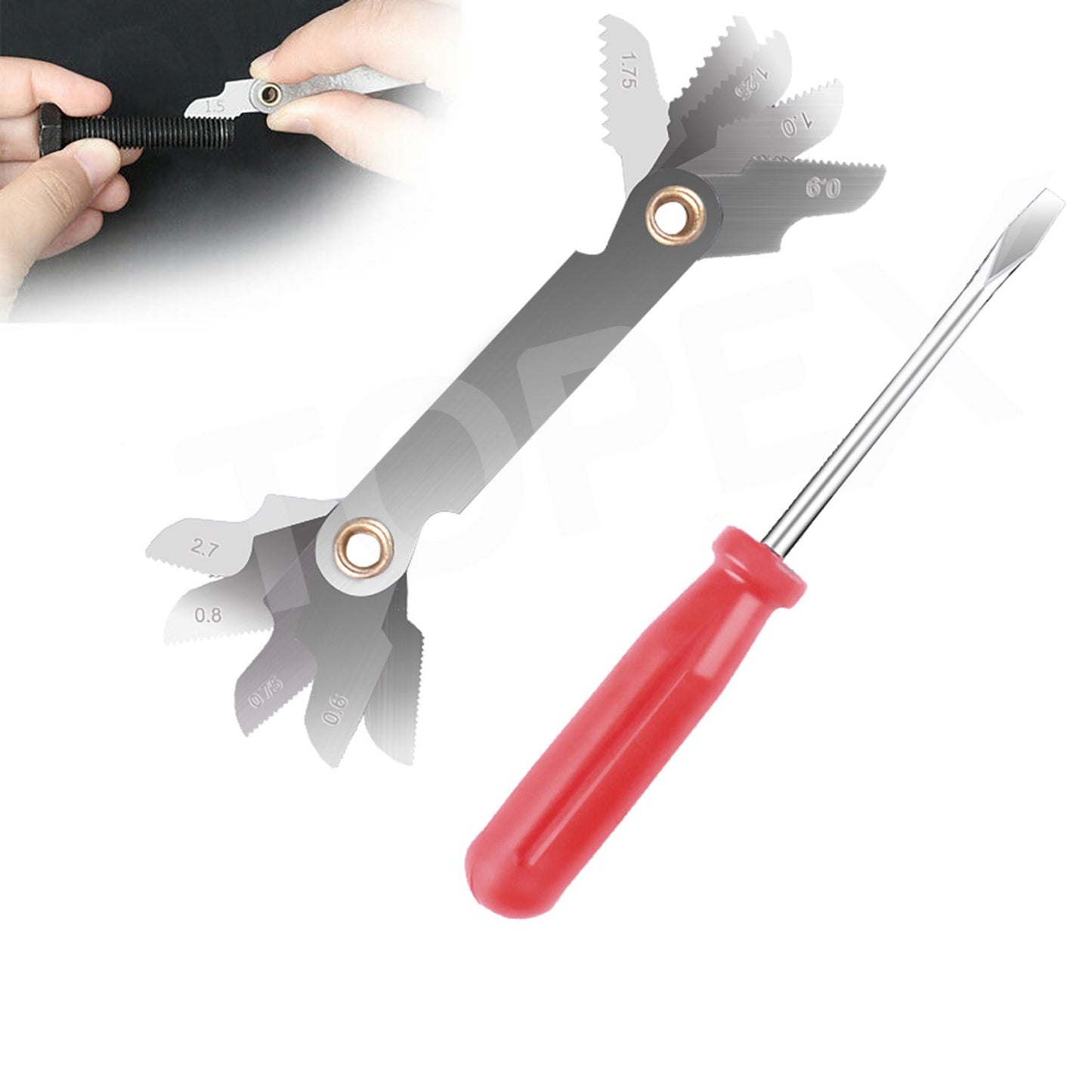

- 1 x Metric Screw / Pitch Gauge
- 1 x Screwdriver for Adequate Fastening of the Dies into the Die Holder.
- 1 x Storage case
- **Imperial Package Including: 17DIES&TAPS - 4-40NC 6-32NC 8-32NC 10-24NC 10-32NF
- 1/4-20NC 1/4-28NF 5/16-18NC 5/16-24NF 3/8-16NC 3/8-24NC
- 7-16/14NC 7/16-20NF 1/2-13NC 1/2-20NF 1/8-27 NPT
- 1 x Adjustable Tap Wrench (M3-M12) - Total Length 195mm
- 1 x Die Holder-Total Length 195mm
- 1 x Imperial Screw / Pitch Gauge
- 1 x Screwdriver for Adequate Fastening of the Dies into the Die Holder
- 1 x Storage case
